Mean well 150W Economical Constant Voltage Mode LED Power Supply

 Introduction

Mean Well 150W economical constant voltage mode LED power supply  LPV-150 series (180~305 VAC input) has been extensively adopted and massively ordered since it was released to the market. To meet the input voltage requirement for some countries and regions, Mean Well introduces LPVL-150 series (90~132 VAC input), providing customer a more price competitive solution using in 110VAC input voltage application. LPVL-150 shares the same mechanical and electrical design topology from predecessor LPV-150 series, offering 12VDC and 24VDC constant voltage (C.V.) output, with IP67 protection level design that is suitable to be used in outdoor environment, possessing complete protection functions and safety approvals.
For those luminary applications which only accept 110VAC input, the LPVL-150 series must be your best choice for 150W economical constant voltage mode LED power supply! This product is suitable for the applications such as LED lighting, LED signage, LED channel lettering, etc.

 Feature

90~132VAC input

Constant voltage (C.V.) output

Class II power unit (no FG)

High efficiency up to 89%

Fanless design, cooling by free air convection

Working temperature: -25 ~ +60°C

IP67 design

Exploits 94V-0 flame retardant plastic enclosure

Complete protections: Short circuit / Overload / Over voltage / Over temperature

Safety Approvals: UL8750 / UL879(SAM) / FCC

Dimension (LxWxH)：191 x 63 x 37.5mm

2 years warranty

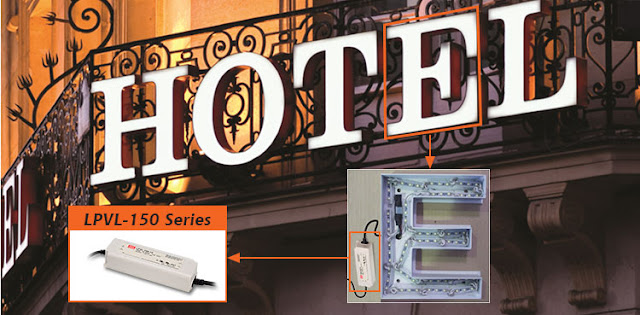

Application

 Order Here

LPVL-150-12                  LPVL-150-24

New Product: 1W SIP DC/DC regulated Converter

Introduction


After SPA02 series is released, MEAN WELL is pleased to unveil a new single output regulated converter ~ SPA01 (1W) in order to continuously fulfill the low cost application demands from miniature type DC-DC converter market. This series adopts SIP6 single in line package and the industrial standard pin assignment. Compared to the current 1W regulated product SPR01 series, SPA01 series has a wider VDC input range (which is 2:1) , higher operating temperature range (-40~+90°C), better working efficiency (79%) and the up to 1500VDC input/output isolation that it is very suitable for industrial control, telecommunication industry and the distributed power architecture related applications.

Feature

2：1 wide input range (A type: 9~18V, B type: 18~36V, C type: 36~75V)

1500VDC I/O isolation

Comply with EMI without any additional components

Working temperature：-40~+90°C

High working efficiency up to 79%

Protections: Short circuit (Continuous) / Overload

Exploits 94V-0 flame retardant plastic case

Approvals: FCC/CE

Dimension (H x W x H): 0.69〞x 0.3〞x 0.44〞(17.4 x 7.75 x 11.1 mm)

2 years warranty

Application

Power solution for High Bay Lighting

Description


HBG series are high performance LED power supplies specially designed for the high/low bay lighting and spot lighting applications. Featuring with circular shape, these new series are easy to be assembled and perfectly fit in with the mechanical structure of high/low bay lighting fixtures.

Fully potted by glue, their aluminum enclosure can be tightly assembled to the heat sink of lighting fixtures and provide excellent heat dissipation ability, which solve the mechanism limits of old style bay lighting systems using slim shape LED power supplies. As long as the temperature on the top of the enclosure can be controlled under 70°C, the power supply service life could be guaranteed up to 40,000 hours.

Features



• Universal AC input (90~305VAC)

• Built-in active PFC function

• High efficiency up to 93.5%

• Protections:

  Short circuit / Over current / Over voltage / Over temperature

• Output current adjustable through internal potentiometer

• IP67 / IP65 design for indoor or outdoor installations

• Suitable for dry, damp, and wet location

• Multiple models for choice:

  A-Type: IP65 rated. Constant current level can be adjusted through

             internal potentiometer

  B-Type: IP67 rated and built-in 3 in 1 dimming function

             (1~10VDC, PWM signal, or resistance)

  Blank-Type: IP67 rated. Cable for I/O connection

  E-Type(option): IP67 rated. Can be mounted on metal frame.

• 5 years warranty

Pic Details

Construction of High Bay light

Installations

Download Spec

HBG-60 series        HBG-100 series      HBG-160 series      HBG-240 series

Meanwell green PCB type power supply with Mini board

Introduction

In order to meet the miniaturization and energy saving demands for related end electronic products from the industrial and control market, Meanwell is pleased to unveil the 45W/65W~EPS-45S/65S series with merely 3” x 2” PCB board size after the same 45W/65W EPS-45/65 series (4” x 2”) were released. The features of these two series are miniature size (3” x 2”), ultra low no load power consumption (<0.1W), less-than-1U low profile design (only 24mm high) that is well suitable for those low-cost applications installed inside the system cabinets without the need of the power enclosures. Suitable applications include industrial electric equipments, electro-mechanical instruments, factory automation systems, electronic devices which demand low no load power consumption.

Feature

• 3” x 2” miniature PCB size
• Ultra low no load power consumption <0.1W
• 24mm low profile
• 80~264VAC full range input
• Class II power unit (without FG)
• High efficiency up to 91%
• Working temperature:-30~+70°C
• Complete protection functions: Short circuit / Overload / Over voltage
• Cooling by free air convection
• LED indicator for power on
• Approved for UL/CUL/TUV/CB/CE
• Dimension (L x W x H): 76.2 x 50.8 x 24 mm
• 3 years warranty

Picture details

Application

Suitable for industrial electric equipment, electro-mechanical instruments, factory automation systems, electronic devices which demand low no load power consumption, etc.

Power your security system from Meanwell power options

Description

DRC series is a AC/DC DIN rail type security power supply. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC series accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDC and 27.6VDC at output, respectively. With the efficiency up to 89%, it can operate with air convection cooling under -30℃ through 70℃ . In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.

Product Details

Features

1. Universal AC input/Full range

2. Protections: Short circuit/ Overload/ Over voltage

3. Battery low protection/Battery reverse polarity protection by fuse

4. Alarm signal for AC OK and Battery low via relay contact

5. Pass LPS

6. LED indicator for power on

7. 100% full load burn-in test

8. 3 years warranty

Application

Prefectly use on Security system, Emergency lighting system, Alarm system, DC UPS system, Central monitoring system, Access systems

Meanwell Dimmable Led Power Supply: Everything under your control

Meanwell HLG series led power supply built-in 3 in 1 dimming function(1~10VDC, PWM signal or resistance)for B type, timmer dimming function for D type. Different dimming methodologies, provide the optimal design flexibility for LED lighting system.

Product Details

1.Wattage Range

Wattage range from 40W to 600W, rated power includes 40W，60W，80W, 100W, 120W, 150W, 185W, 240W, 320W, 600W

2. Dimming methodology

3 in 1 dimming, timmer dimming, smarter dimming,optimized to fully satisfy your dimming needs.

3. Built in active PFC function

Fully improve the ratio of apparent power and real power, more effective for your electricity

4. IP rating

IP67 design for indoor or outdoor installations

5. Certificate

Regulations approved by UL/CUL/ENEC/CB/CE. Guaranteed product quality.

6.Warranty

Meanwell upward warranty in 2015 from 5 years to current 7 years

7.Application

Meanwell 100W~600W Harsh Environment Power Supply

Introduction

If you are looking for a high-grade AC/DC power supply- with low noise and has to operate under highly humid, highly dusty, highly oily, highly salty, ultra low or high temperature, heavily vibrating, high altitude and poor ventilation environment- the HEP family from Mean Well will be your best choice! Mean Well is pleased to introduce the HEP series, providing rated power 100W/150W/185W/240W/320W/600W, respectively. These three series adopt aluminum case and the interior are fully potted with the heat-conducted silicone; moreover, thanks to the mechanical design experience Mean Well has built up for years, these three series are equipped with the IP65 high level protection against the ingress of dust and water (optional IP68 level models are also available) and the up to 10G anti-vibration capability. The high efficiency is up to 94% that they are thus able to work under the ambient temperature ranging between -55℃ and +70℃. HEP series accept the wide input range 90~305 VAC and offer various models of the output voltage 12V/15V/24V/36V/48V/54V, so they can perfectly fit the industrial control applications running in harsh environment all over the world, such as outdoor telecommunication equipments, outdoor electronic signage and billboards, and petroleum plants or mine shaft facilities.

Feature

90~305VAC full range input

Class I power unit (with FG)

Built-in active PFC function

Robust aluminum case and filling with heat-conducted silicone

High efficiency up to 94%

Fanless design, cooling by free air convection

IP65 high protection level, optional IP68 level model available

Wide working temperature range : -55~+70℃

Meet 6KV surge immunity level

Withstand 10G vibration test

Operating altitude up to 5000 meters

Protections : Short circuit / Overload / Over voltage / Over temperature

Approvals : UL/CUL/CB/CE

Dimension (L x W x H) : HEP-100, 220 x 68 x 38.8mm; HEP-150/185, 228 x 68 x 38.8mm

6 years warranty

Application

Order Information

Download SPEC

HEP-100 series     HEP-150 series     HEP-185 series

HEP-240 series     HEP-320 series     HEP-600 series
